TECHNICAL FEATURES
|
Sealed
Construction
- GFX SLA battery unique construction and sealing technique guarantee
that no electrolyte leakage can occur from the terminals or case
of any battery. This feature insures safe, efficient operation of
SLA battery in any position.
Electrolyte
Suspension System - All
GFX SLA batteries utilize an electrolyte suspension system consisting
of a glass fiber separator material. This suspension system allows
maximum life and service.
Gas
Generation - GFX batteries have a unique design that
effectively controls generation of gas and allows recombination
within the battery over 99% of gas generated during normal usage.
Maintenance
Free Operation - During the expected five years float
service life of SLA batteries, there is no need to check the specific
gravity of the electrolyte, or add water. In fact, there is no provision
for these maintenance functions.
Low
Pressure Venting System - SLA batteries are equipped
with a safe, low pressure venting system, which operates at 7 psi
to 10 psi, designed to release excess gas and reseal automatically
in the event that gas pressure rises to a level above the normal
rate.
|
- Heavy
Duty Grids
- The heavy-duty lead calcium alloy grids in the batteries provide
an extra margin of performance and service life in both float
and cyclic applications.
- Cyclic
Service Life - Depending upon the average depth of
discharge, over 1,000 discharge/ recharge cycles can be expected
from GFX batteries
- Float
Service Life - The expected service life of SLA batteries
used in float (trickle charge) service is 4 to 5 years.
- Low
Self Discharge - At room temperature, its self-discharge
rate of GFX batteries is approximately 3% of rated capacity per
month.
- Operating
Temperature Range - GFX batteries may be used over
a broad range of ambient temperatures.
|

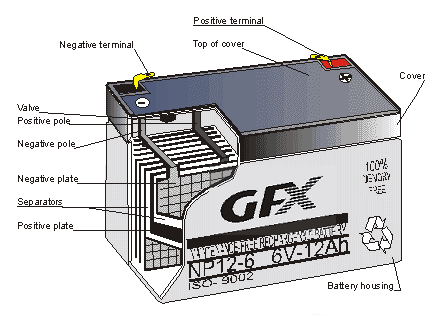

The construction of a Standard
Series SLA battery
